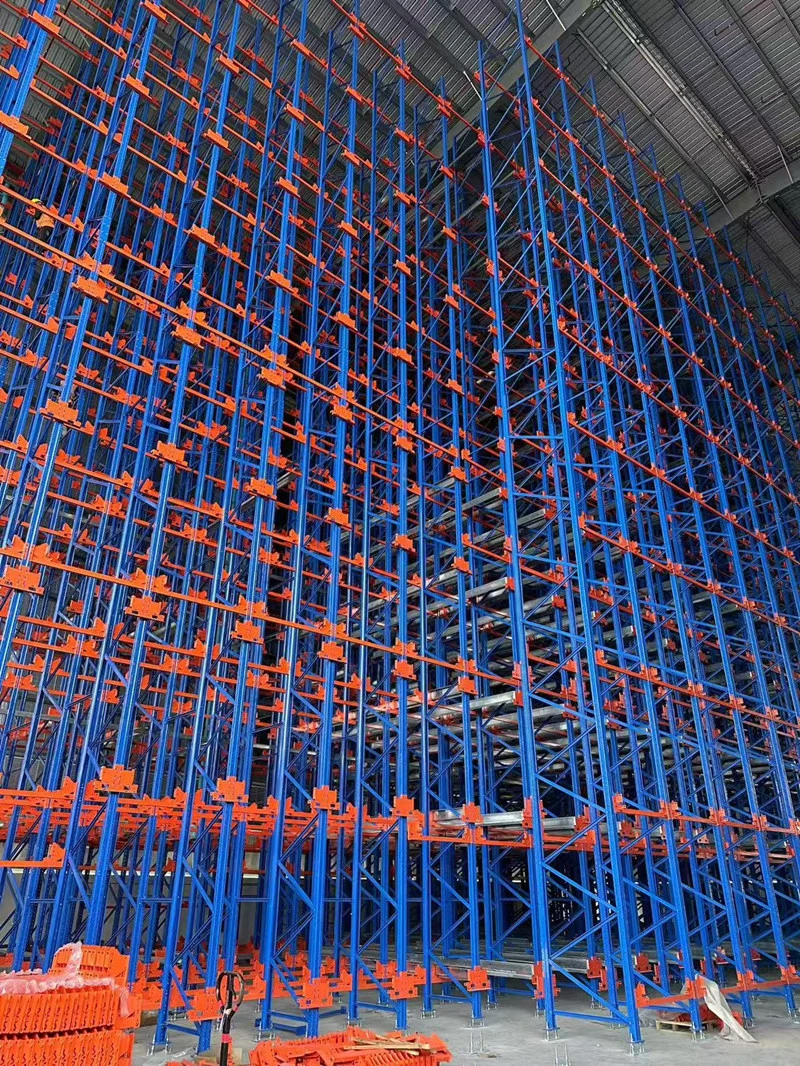

Four-way Shuttle Automated Storage and Retrieval System

The four-way shuttle automated storage and retrieval system is a technologically advanced dense storage system in modern warehousing. It consists of high-level racking, four-way shuttles, goods lifts, and a warehouse management control system. The four-way shuttle can move freely on both horizontal and vertical rails within the rack structure. It can travel in four directions: forward, backward, left, and right. This is why it is called a four-way shuttle. This design allows the shuttle to reach any storage position in the rack. It does not rely on fixed aisles like traditional stacker cranes. The storage density is extremely high. Space utilization is several times that of standard warehouses. It is especially suitable for modern warehouses with high land costs and diverse product ranges.

Qingdao Shuoxin Storage Equipment Co., Ltd. has technical expertise and experience in manufacturing high-precision racking for four-way shuttle systems. We were founded in 2021 with a registered capital of 5 million RMB. Our factory is at No. 15 Guangdong Road, Jiaozhou, Qingdao. It covers 6,000 square meters and employs 35 skilled workers. Our technical team can design the rack structure and rail layout. We consider the shuttle operating parameters, product dimensions, and warehouse conditions. We use European-made high-precision roll-forming equipment. This allows us to produce rack components that meet the strict accuracy requirements for automated systems. We control critical dimensions like rail straightness, levelness, and rack verticality to millimeter precision.

The racking for the four-way shuttle system is made from Q235B high-strength carbon structural steel. The uprights, beams, and rail support beams are designed using rigorous structural mechanics. This ensures long-term safety under frequent shuttle operation and heavy loads. The rail mounting surfaces are held to extremely tight tolerances. This guarantees smooth and stable shuttle movement. All connection points are designed for good structural rigidity after installation. The surface is treated with electrostatic spray painting for a uniform and durable coating. We support custom manufacturing based on your drawings. We can design and build to your warehouse conditions and equipment parameters. Our MOQ is 10 sets. Standard delivery is 10 days. Custom products take 20 days.

Our quality assurance includes full inspection from material arrival to final packing. Professional inspectors check every stage. Critical dimensions are verified using precision measuring tools. We perform a 100% inspection before packing. We also accept third-party inspections. Our products come with a 24-month warranty. If goods are damaged during shipping, we will send replacements at no extra cost. Payment is 30% deposit and 70% before shipment. We provide regular progress updates (photos/videos) during production.
